Compact walk-behind floor scrubber
Mini 3070
A unique compact scrubber-dryer with four brushes and a 70 cm cleaning path.
The Mini 3070 floor scrubber-dryer — with 4 brushes, a 70 cm cleaning path and a 30-litre solution tank — is a unique model, ideal for continuous maintenance cleaning of areas up to 1,000 m².
- 70 cm cleaning path (4 brushes)
- 30 L solution capacity
- Ideal for areas up to 1,000 m²
- Up to ~3 h runtime (Lithium Plus)
Ideal for
01

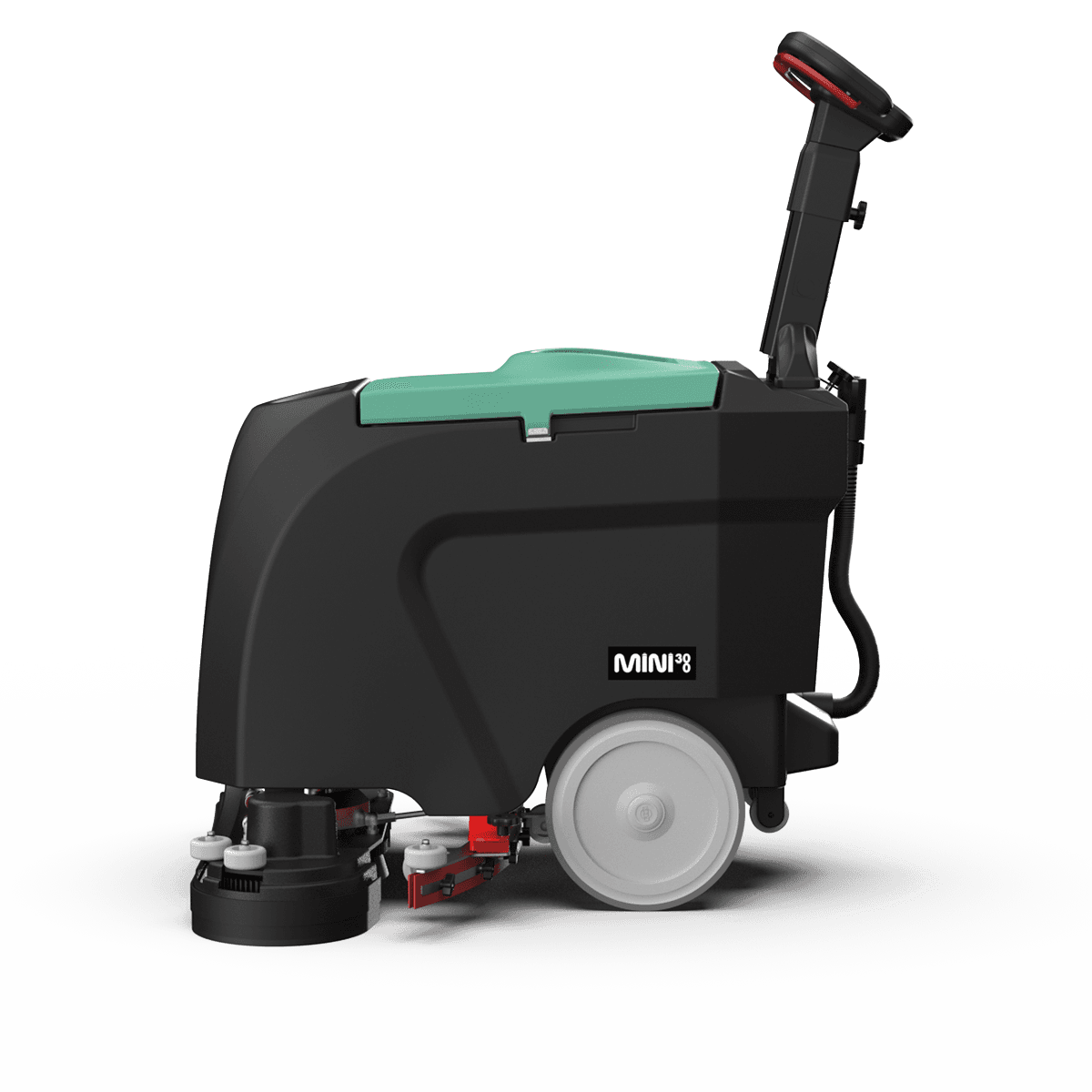

High productivity, low operating costs
With a 30-litre tank and a 70 cm cleaning path (4×7"), the Mini 3070 is ideal for areas up to 1,000 m². Light and easy to handle, it's designed for optimal cleaning in small supermarkets and commercial or public spaces — and for extended use, the traction (forward-drive) version is recommended. KlinMak's patented four-brush system drives four counter-rotating toothed brushes from a single motor, ensuring uniform cleaning with reduced energy consumption, while edge-to-edge cleaning works in both directions without leaving residue along the edges.
02

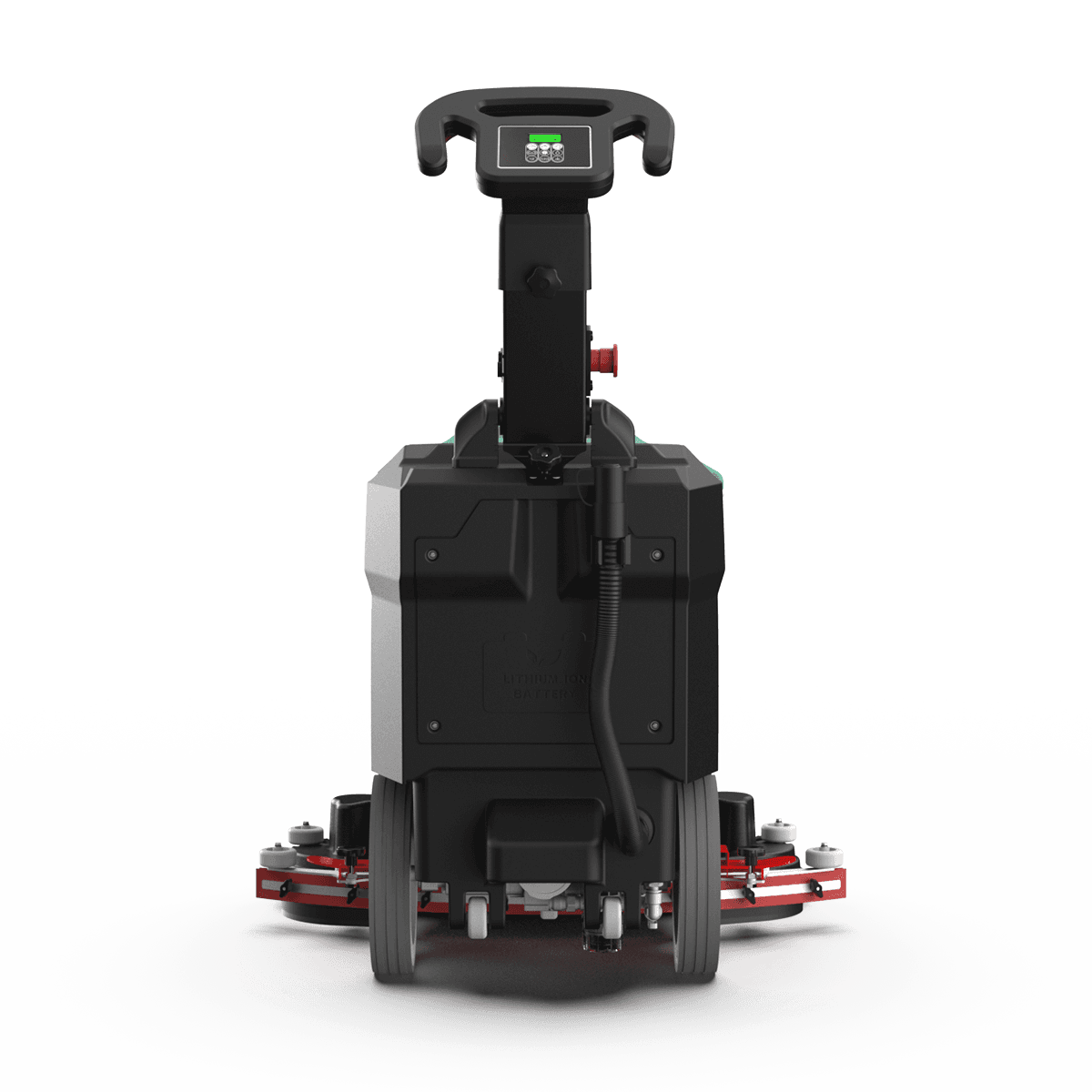

Cutting-edge & eco-friendly technology
A lithium battery delivers extended runtime and quick charging, while the standard HEPA H13 filter captures fine particles and improves air quality — ideal for sensitive environments. The advanced electronic control board offers 2 levels of scrubbing power to adapt to different levels of dirt and 3 levels of suction power for optimised drying. Made from 80% recycled materials and ESG-compliant, it reduces water and detergent usage through optimised solution distribution, and its four-brush technology delivers superior cleaning versus traditional single-brush machines.
03

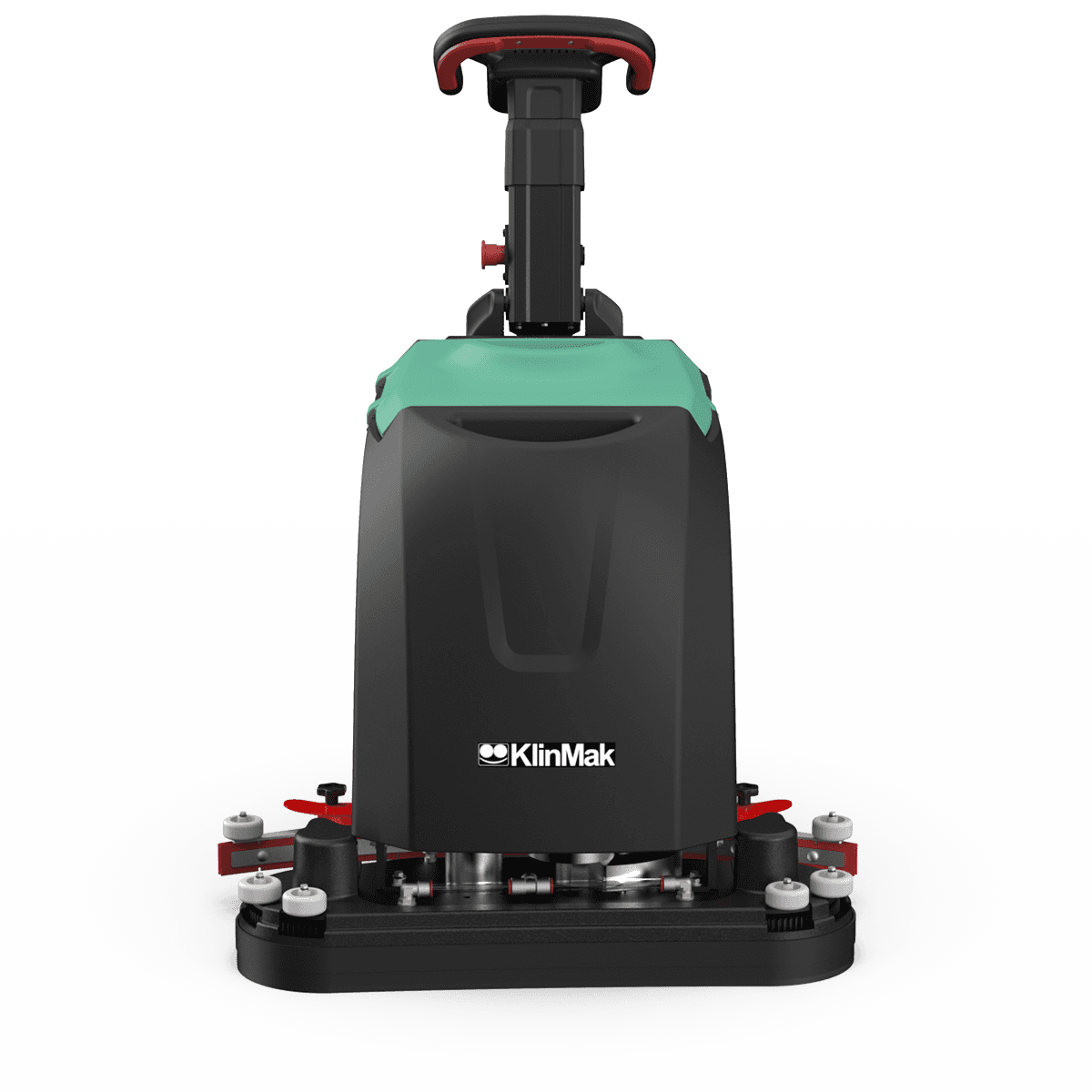

Ergonomics & ease of use
An adjustable, foldable handle makes the machine easy to transport in cars, vans or commercial vehicles — perfect for cleaning contractors and facility managers. The patented quick-release brush system lets you change brushes in seconds with no tools required.
Key features
Patented 4-brush system
One motor drives four counter-rotating brushes for uniform cleaning and reduced energy consumption.
Lithium battery power
Lithium battery for extended runtime — nearly 3 hours — with quick charging.
HEPA H13 filter standard
Captures fine particles and improves air quality — ideal for sensitive environments.
Adjustable power levels
2 levels of scrubbing power and 3 of suction power to match any job.
Edge-to-edge cleaning
Cleans in both directions without leaving residue along the edges.
Tool-free maintenance
Patented quick-release brush system — change brushes in seconds, no tools required.
Technical specifications
Built for performance, spec by spec.
| Specification | 3070 Plus | 3070 FT Plus |
|---|---|---|
| Code | F.480.0 | F.490.0 |
| Total installed power | 850 W | 950 W |
| Tank capacity (sol. / rec.) | 30 / 30 L | 30 / 30 L |
| Sound pressure level | 63.9 dB(A) | 63.9 dB(A) |
| Work width / squeegee | 712 mm / 800 mm | 712 mm / 800 mm |
| Brush speed | 220/290 rpm | 220/290 rpm |
| Washing motor power | 500 W | 500 W |
| Weight on head | 30 kg max | 30 kg max |
| Solution flow rate | 0–2 L/min | 0–2 L/min |
| Hourly yield at 2 km/h | 1,400 m²/h | 1,400 m²/h |
| Suction turbine motor power | 350 W | 350 W |
| Traction motor power | — | 100 W |
| Maximum slope | 2% | 2% |
| Power supply – voltage | DC – 54.6V | DC – 54.6V |
| Lithium battery | 19.2 Ah | 19.2 Ah |
| Battery charger | 5 A | 5 A |
| Autonomy / charging time | 2.5h / 4h | 2.5h / 4h |
| Dimensions (closed) | 950×550×1,100 (720) mm | 950×550×1,100 (720) mm |
| Packaging dimensions | 975×804×1,065 mm | 975×804×1,065 mm |
| Net weight / with packaging | 74 / 88 kg | 79 / 93 kg |
A sustainable commitment
Made from 80% recycled materials, ESG-compliant.
Reduces water and detergent usage through optimised solution distribution, while four-brush technology cuts energy consumption versus single-brush machines.
